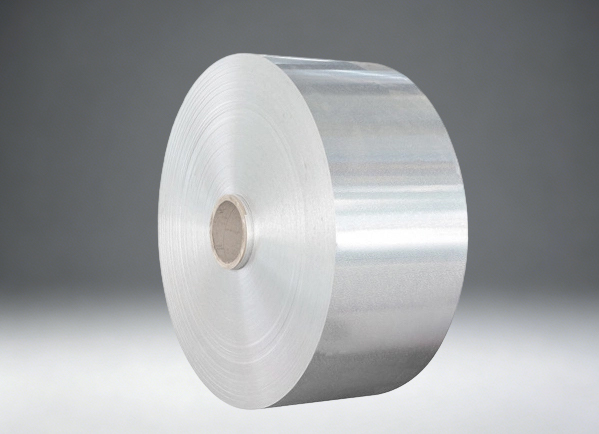

5052 Aluminum Coil
Alloy: 5052
Temper: O, H24, H32, H34, etc.
Width: 100-2600 mm
Thickness: 0.2-8.0 mm
Inner Diameter: 75 mm, 150 mm, 200 mm, 300 mm, 400 mm, 508 mm, or custom
Outer Diameter: Customizable as per customer requirements
Surface Treatment: Original color, silver aluminum, colored coatings, anodized, mirror polished, diamond pattern, embossed, brushed, embossed patterns.
Introduction
5052 aluminum coil is an aluminum alloy composed of 2.5% magnesium and 0.25% chromium. It is known for its excellent machinability and weldability, with moderate static strength and high fatigue resistance. This alloy offers excellent corrosion resistance, especially in saltwater environments, along with lightweight properties, good workability, and high fatigue strength. It also features outstanding rust resistance and weldability, making it cost-effective and environmentally friendly.
Like other aluminum alloys, it has excellent thermal conductivity and low density. The 5052 alloy can be hardened through cold working, but its strength cannot be increased through heat treatment.
Parameter
| Chemical Elements and Content(max) | |||||||||||
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Ni | Al | Others |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | - | 99.5 | - |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | - | 99.6 | - |
| 1100 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.1 | 99.5 | - |
| 3003 | 0.5 | 0.5 | 4.9 | 0.9 | 1.8 | - | 0.25 | 0.15 | - | Remainder | 0.15 |
| 5052 | 0.45 (Si+Fe) | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | Remainder | ||||
Packing & Delivery
1.Standard seaworthy export packing, wooden pallets with plastics protection for the coil and sheet;
2.The other packing can be made based on the customer requirement;
3. Normally, we have four layers of packing: wooden pallets hardboard, Kraft paper and plastic. And fill more desiccants into package.
